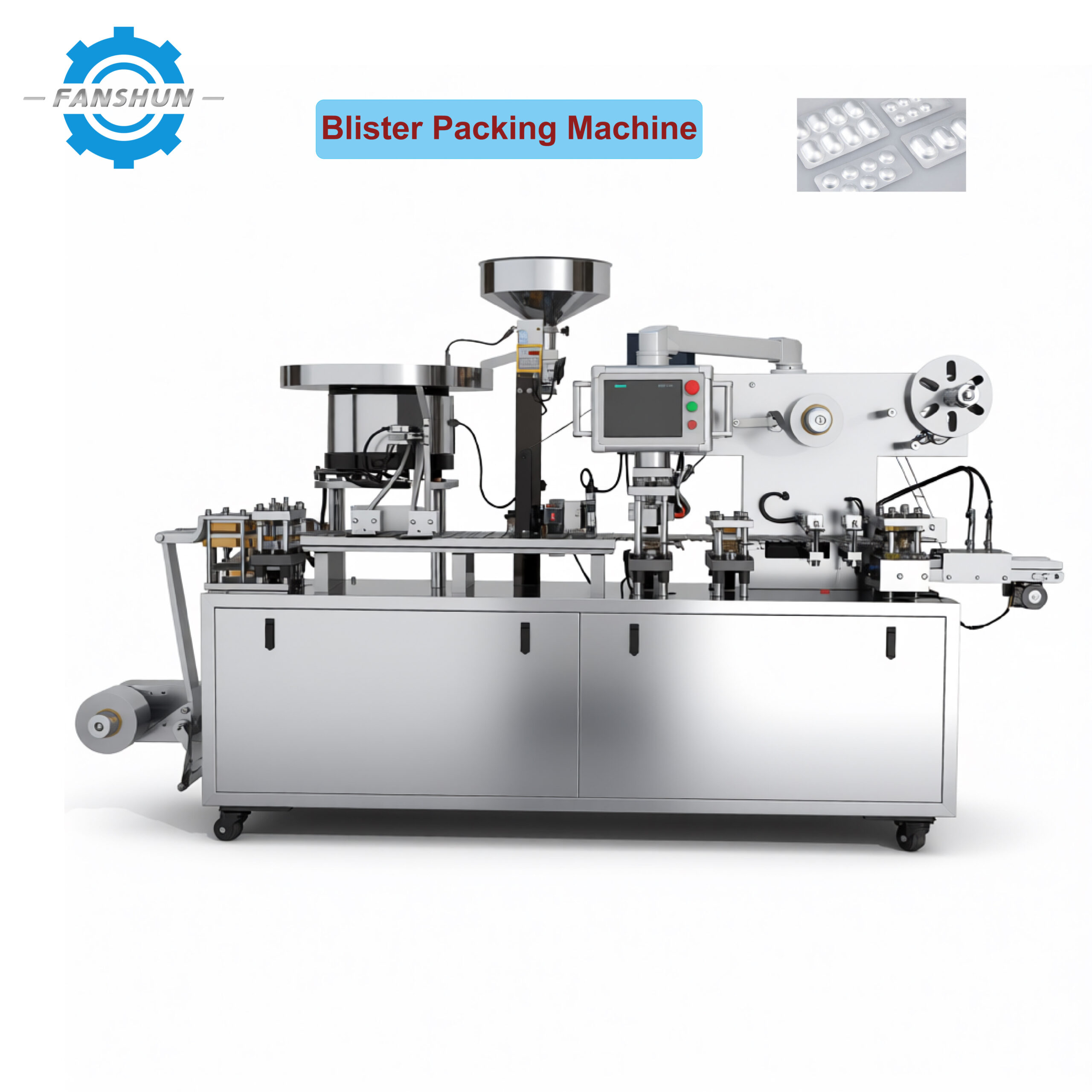

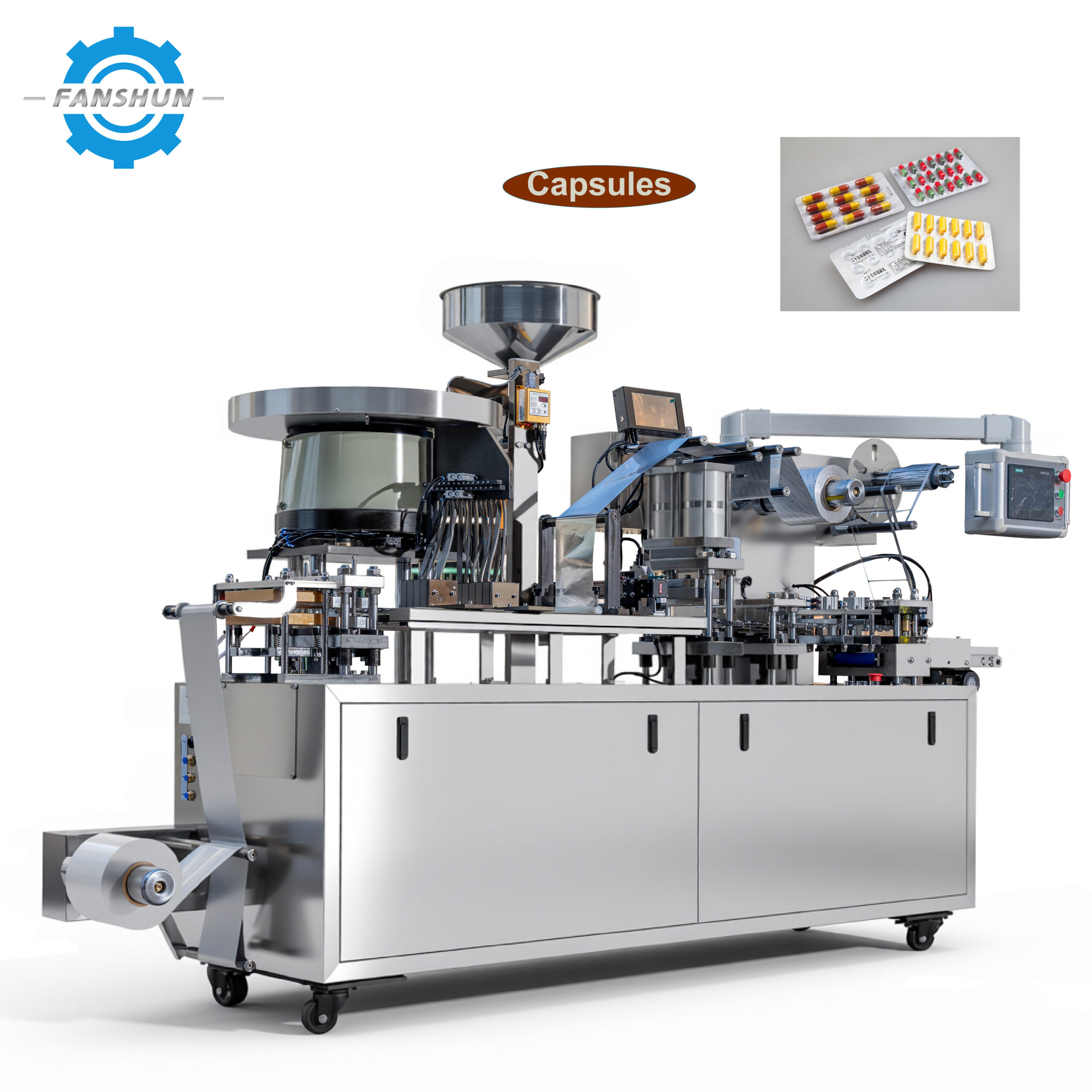

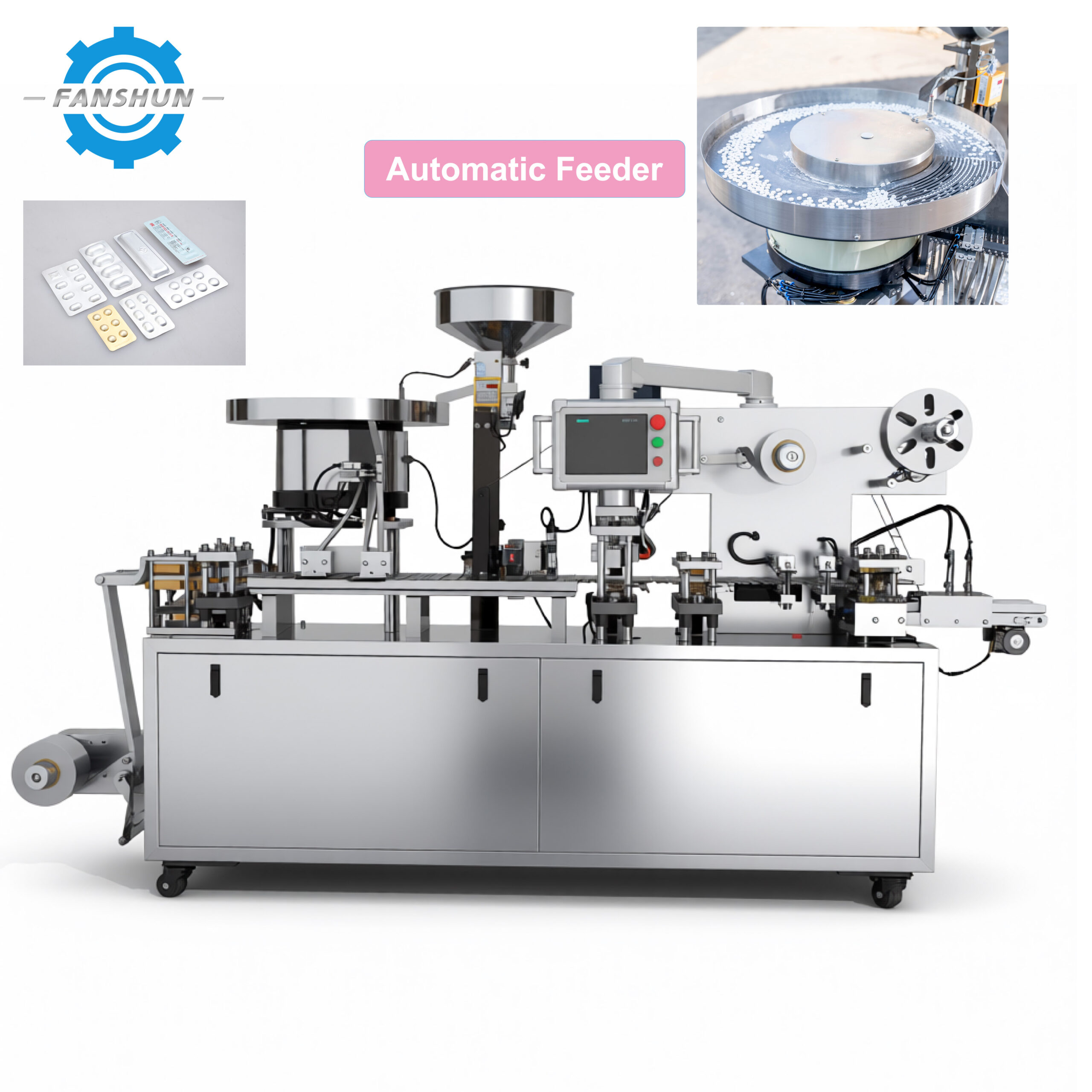

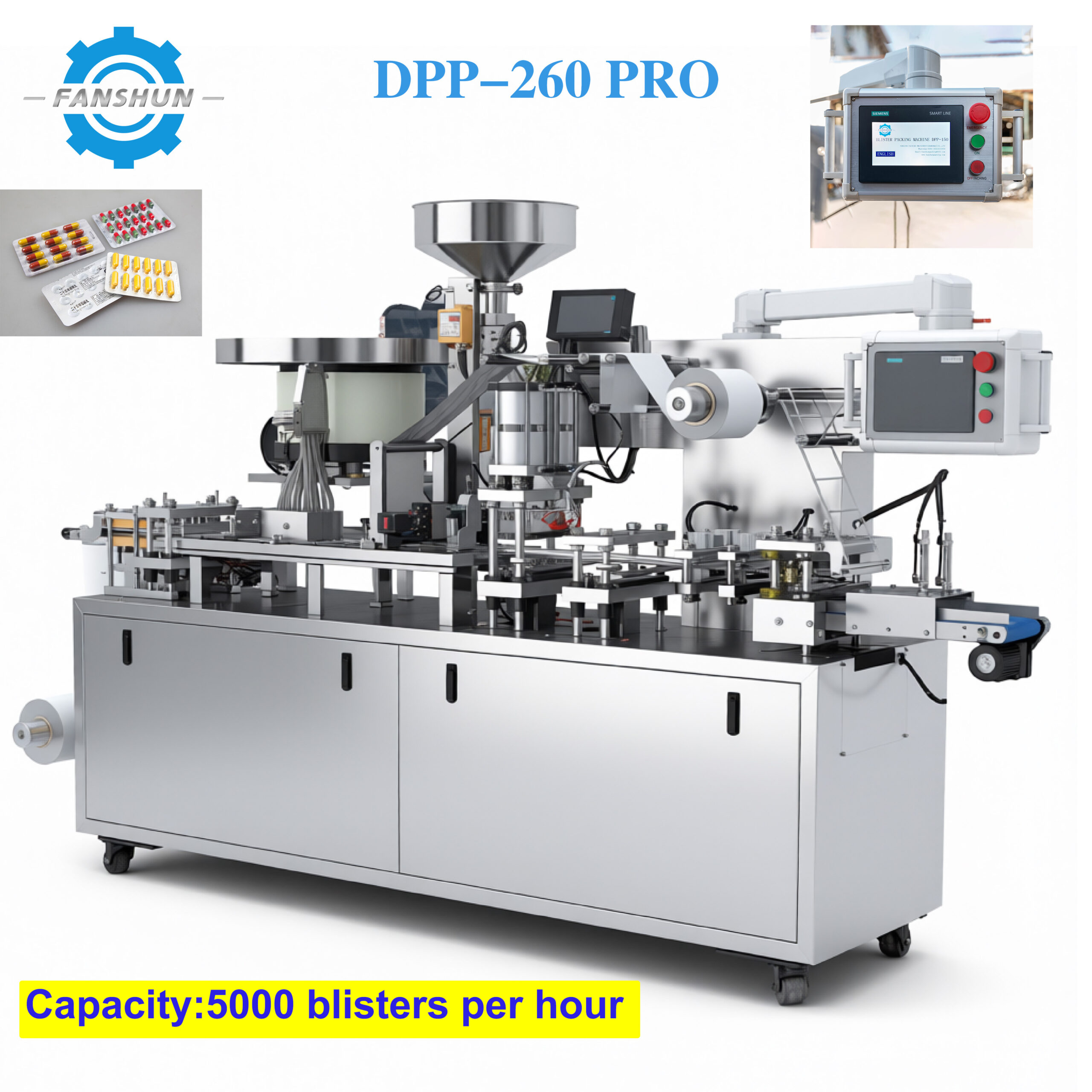

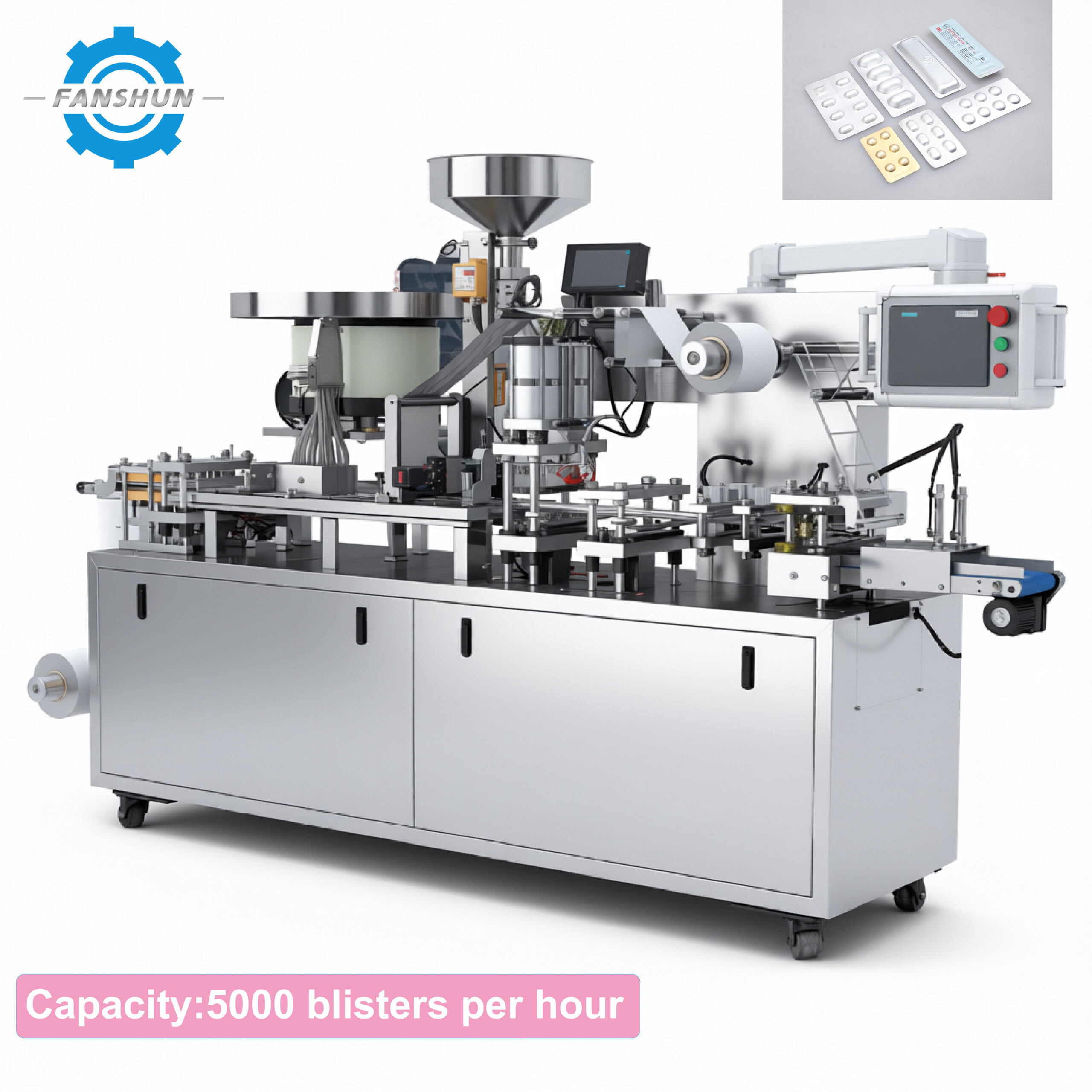

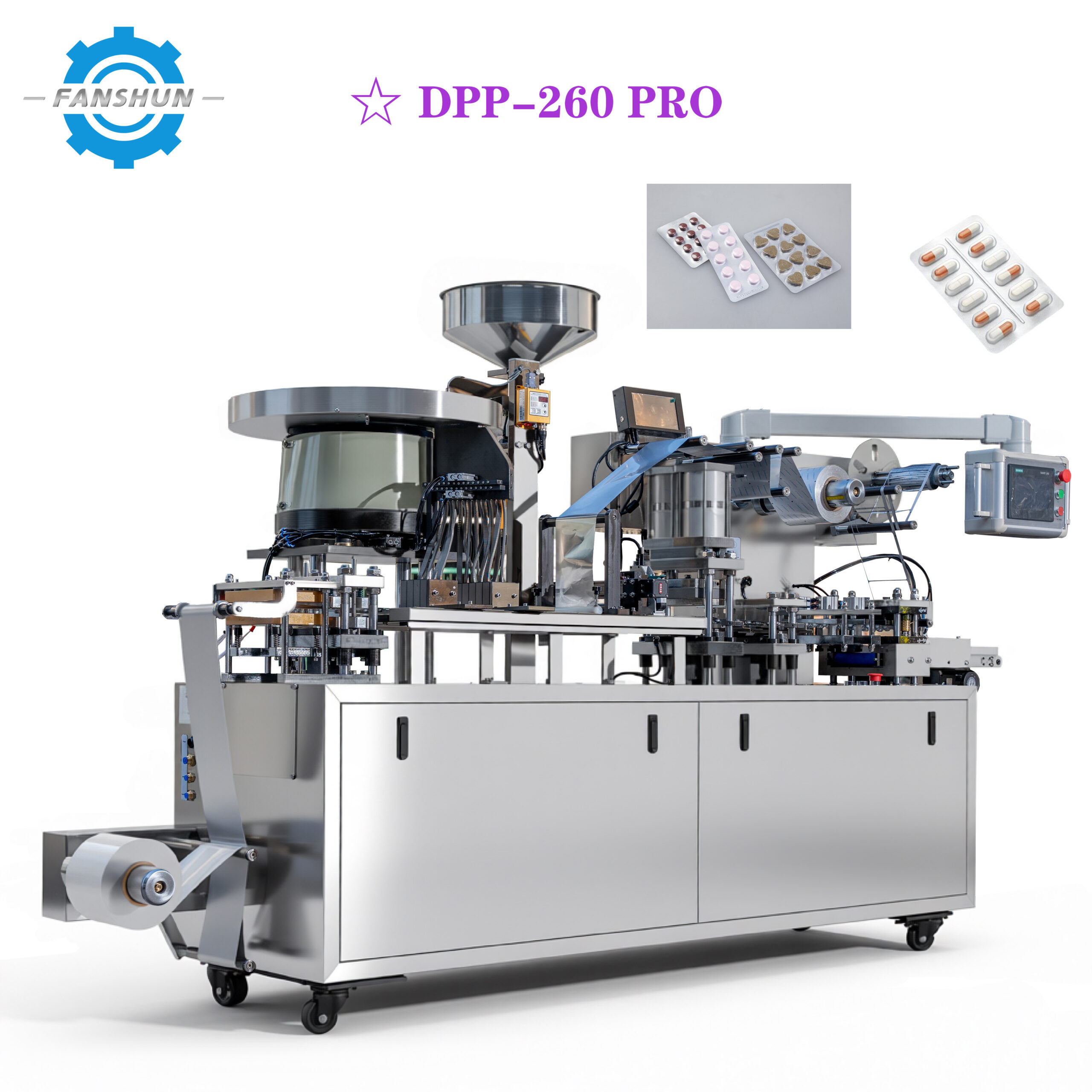

Alu-PVC Blister Packaging Machine DPP-260 PRO
Product Overview
DPP-260 PRO blister packaging machine is widely used in pharmaceutical, food and electronic industries. It automatically completes PVC forming, material feeding, heat sealing, punching and waste trimming for tablets, capsules and pills. Adopting upgraded heavy-duty frame and control system, it features higher speed and stable running performance, suitable for large batch continuous production.
Product Features
• Upgraded high-speed blister packing machine for mass batch production
• Compatible with Alu-PVC, Alu-Alu composite packaging materials
• Equipped with missing tablet detection and automatic rejection function
• Material contact parts adopt 304 stainless steel, fully GMP compliant

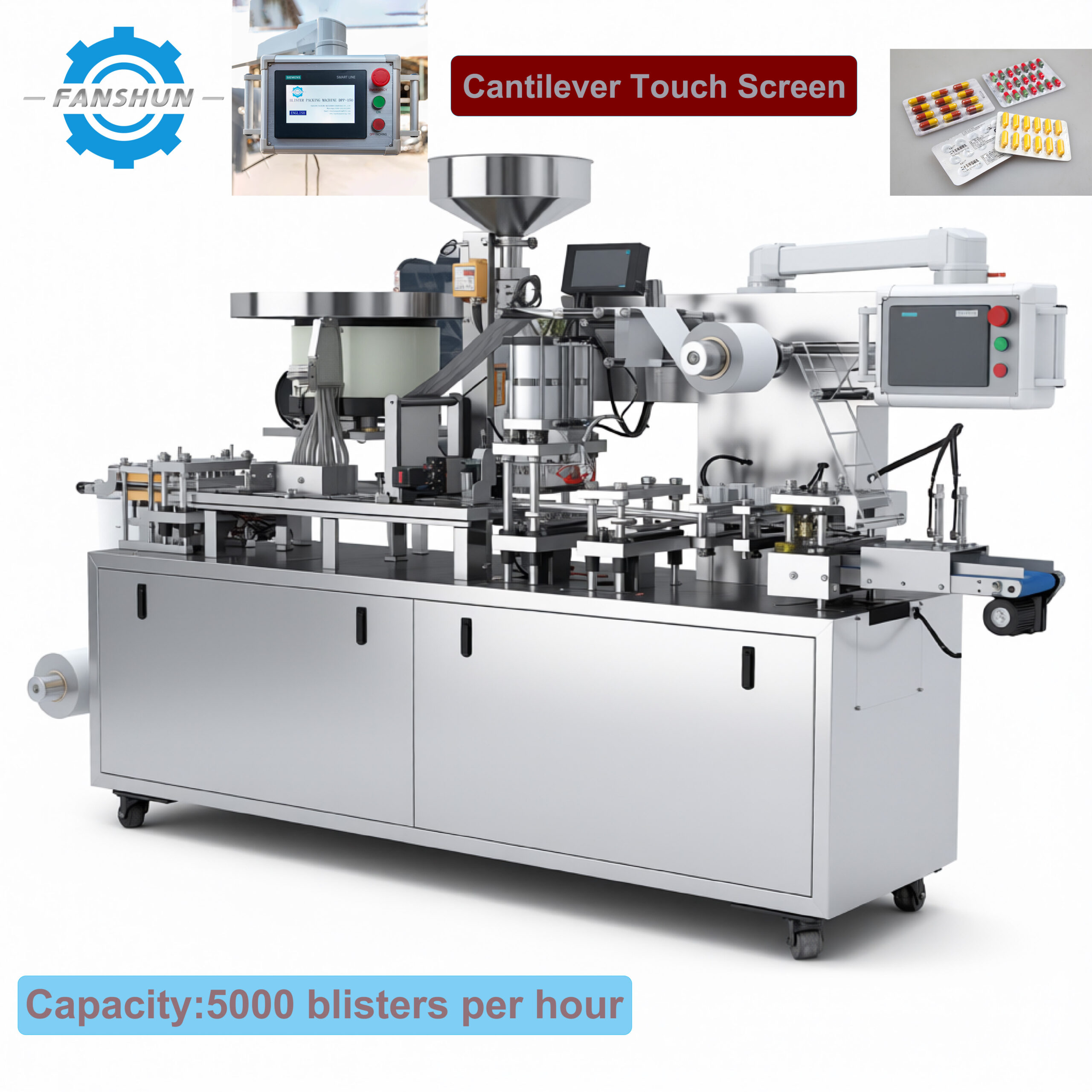

• PLC & touch screen control, frequency conversion speed regulation
• Quick mould replacement for different blister sizes, easy to customize
• Stable heavy-duty operation, convenient disassembly, cleaning and maintenance
Technical Parameter
|
Main machine |
Model DPP-260 PRO |
|
Production Capacity |
4800 plates/h |
|
Max forming area |
260*110*26mm |
|
Power: |
8.5kw |
|
Air pressure |
0.4-0.6Mpa |
|
Material |
304 stainless steel |
|
Voltage |
220V,50HZ |
|
External Size: |
4460*760*1620mm |
|
Weight: |
1850kg |

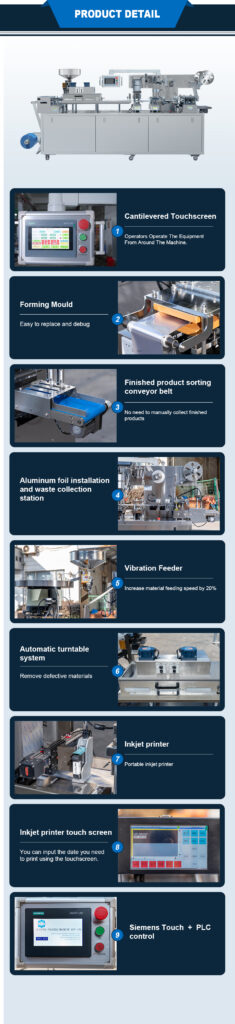

Product Detail
