Introductions:

The machine is new innovating designed by our machine which is widely for packaging of medicine, which of function are reached to the advanced level of China. It is used for tablet, kapsule, pil, honey pill, candy, liquid, paste, disposable syringe in regular and irregular shaped Alu/PVC, Alu/Alu or Paper /Alu in the field of pharmaceutical, health product, foodstuff, cosmetic , medical instrument and etc.

Product features:

Forming, heating sealing, batch marking, impression and cutting are with

Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.

2.

Mechanical hand traction: it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of blister. Plate heating, positive forming, upper and lower web plates, heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.



3、It has Positive pressure forming and mechanical punch for uniformity and perfect blister forming. It is applicable for packaging with larger size or special shaped of honey pill, big honey pills and etc. it is equipped with special automatic feeder for packaging of ampoule, syringes and injection vial. It is a machine with wide range of application for packaging.

4、The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.

5、The body of machine can be produced under the split production for easier moving into the working room.



Note:

Optional Equipped with Photocell detecting device

Optional Equipped with Acylic glass cover

Optional Equipped with ink jet coding device

Technical Specifications:

Punches Frequency: 10/40tye/min

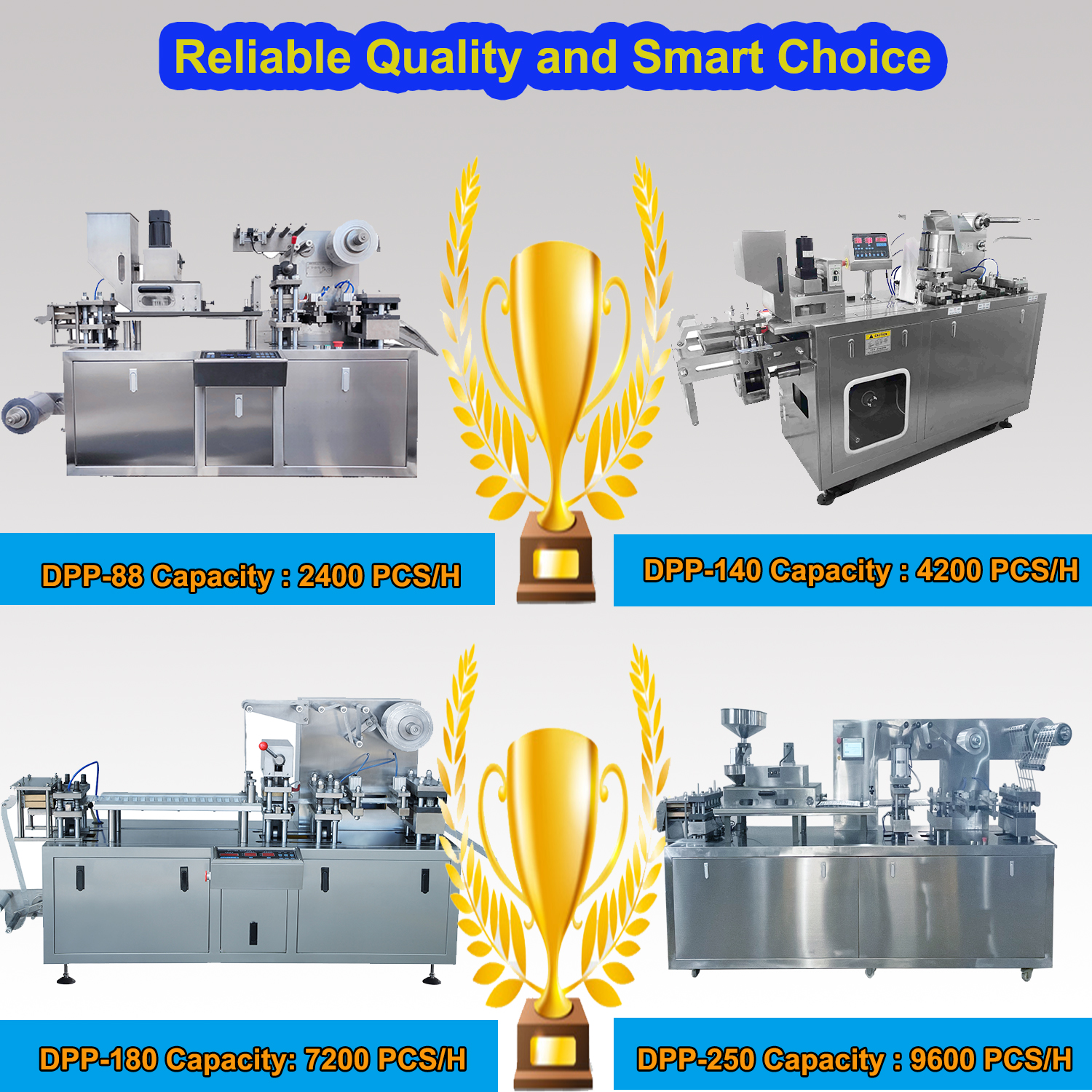

Produksie kapasiteit:2400-9600pcs/hour

Maksimum. Forming area and depth : 240x140x26mm

(Standaard plaatgrootte: 240x140x14mm)

Stroke travel range: 40-140mm

Standaard plaatgrootte: 80x57mm( designed as per user’s requirement)

Air pressure: 0.4-0.6Mpa

Air compressed required: ≥0.3m3/min

Totale kragtoevoer: 380V/220V 50Hz 8.5kw

Main motor: 2.2KW

PVC harde film: 0.15-0.5×250 mm

PTP aluminium film

Dialise papier: 50-100g×250mm

Vorm verkoeling: Kraanwater of herwinningswater
Algehele dimensie: 3250×710×1700mm(L×W×H)

Gewig: 1400kg



Configuration list

Item	Naam	Spesifikasie/model	Brandmerk	Aantal
1	Traksie silinder	SDA φ25×10	SHENPU	2
2	Hoofmotor	CH40-B 3HP2200W	Zhejiang libang	1
3	Vorm verwarmingsplaat	290×250×25 2000W	Sjanghai Herun	2
4	Verhitting seëlplaat	265×120×25 1500W	Sjanghai Herun	1
5	Frekwensie-omskakelaar	DVM-4T022-05	Zhejiang Delair	1
6	Voedingsmotor	8Z52JW15	Jinan Yibang	1
7	Motor vir die versameling van afvalmateriaal	4RK25GN-CZ 4GN-15K	Libang,Zhejiang	2
8	Termokoppel	WRKT-01	Tes Taiwan	2
9	Lugstroombreker	C65N-C32	Schneider	1
10	Lugstroombreker	C65N-C16	Schneider	3
11	Skakel kragtoevoer	LRS-75-24	Ming Wei	1
12	Lugstroombreker	C65N-C6	Schneider	1
13	Raak skerm	ST700	Siemens	1 (optional)
14	PLC	CPU224CN	Siemens	1
15	Soliede aflos	SSR-40DA	Yangming, Taiwan Foto Taiwan	3
16	Nabyheidskakelaar	TL-Q5MCI-Z	Omron	3
17	Elektromagnetiese klep	4V210-08	AirTAC	6
18	Noodknoppie	XB2-BS542	Schneider	3
19	The cursor	GDL-211	Shanghai Yatai	1 (optional)
20	Temperatuur module	EM231CN	Siemens	1
21	Spoedbeheermodule	EM232CN	Siemens	1
22	Servo motor	MHMF082LIU2M	panaonic	1
23	Expansion module	EM222CN	siemens	1
24	Miniature relay	2Y2N	omron	9
25	Encoder Die enkodeer	E6B2-CWZ6C	omron	1
