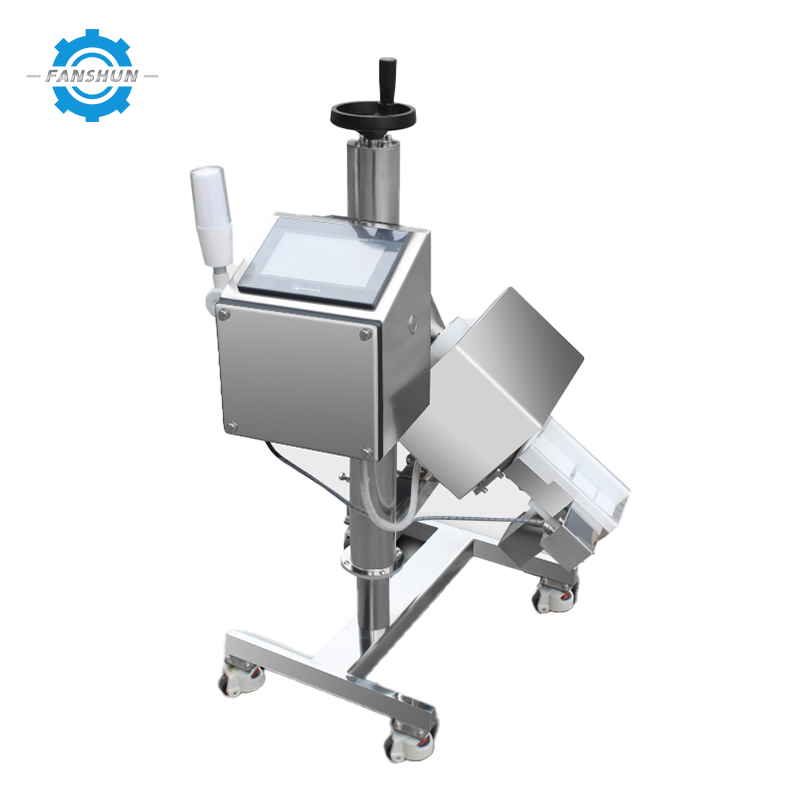

Medical Metal Detector FPEC-G2

Short Description:

PRODUCT DETAIL
PRODUCT TAGS

Product Overview:

FEC2005G2 pharmaceutical metal detector is specially used in the pharmaceutical and health care products industry with extremely high detection accuracy requirements. It is made with German technology, has ultra-high sensitivity, stable and reliable performance, and can quickly remove products containing metal foreign matter.

Product features:

With its unique accuracy, it can detect tiny metal objects in medicines, and the processing speed can reach about 15,000 grains per minute;
It can handle various types of medicines. In order to save space, a more compact rack design is adopted;
The selection part of the automatic rejection device uses food-grade PVC material;
The detection sensitivity is higher than the industry standard, and the maximum detection of iron balls larger than 0.3mm in diameter can be detected;
The sensitivity can be adjusted according to the characteristics of the product, and the number of detection rejections can be recorded in real time, and the records can be cleared manually;
Made of all stainless steel, the product is waterproof (IP66), anti-vibration, highly adaptable to environmental and temperature changes, and easy to clean;
Modular component replacement, convenient and fast maintenance;
Multiple language function options (Chinese, English, Japanese, etc., other languages can be customized as needed);
Comply with relevant certification standards such as HACCP, GMP, GAMP, FDA, IFS, ISO9001, etc.

Technical Parameter

Name	Parameter
Adjustable angle	30˚ ~ 40˚
Inlet size	150mm * 100mm
Pipeline diameter	Ф40mm
Inlet height adjustable	800(MAX+150)mm
Outlet height adjustable	350(MAX+150)mm
Detection sensitivity	FeΦ：0.3mm
Detection sensitivity	SUSΦ：0.6mm
