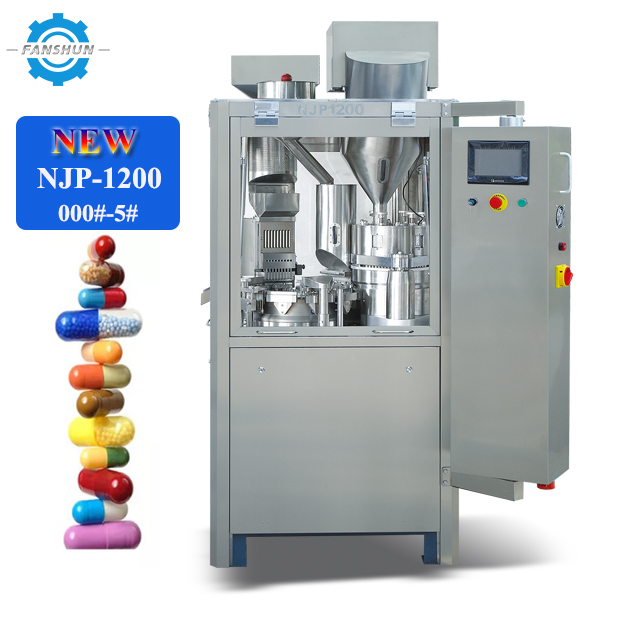

Fully Automatic Capsule Filling Machine NJP-1200
Main Parameter
Model | NJP-1200C. |
Output | 72000Capsules/hour |
Machine weight | 1100Kg |
Machine Dimensions | 960×1000×1900 |
Power Supply | 380/220V 50Hz |
Motor power | 5.5kw |
No.of segment bores | 9 |
Vacuum | 40m3/h-0.04-0.08Mpa |
Dust | 24.5Kpa 210m3/h |
Noise | <75DB(A) |
Making rate | Empty capsule99.9%Full capsule over99.5% |
Suitable for Capsule | 00,0,1,2,3,4,5# |
Filling error | ±3%-±4% |

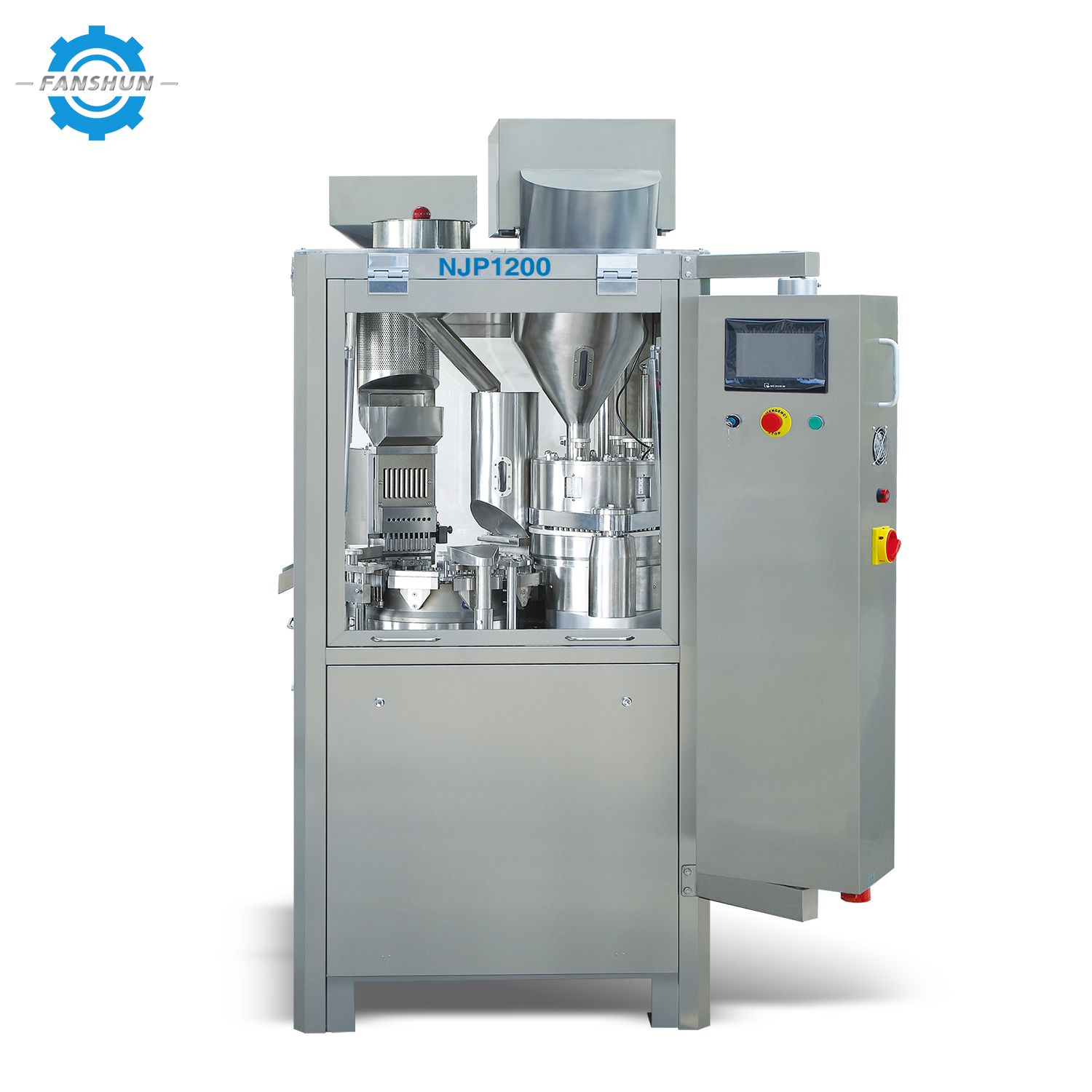

NJP-1200C Automatic Capsule Filling Machine
Main Electrical Component List
Izena | Specification type | Qty | Producing Place |
Touch Screen | Tk6070iH | 1 | Taiwan |
PLC | DVP-14ES | 1 | Taiwan Delta |
Switch Power Supply | NES-50-24 | 1 | Taiwan Mingwei |
AC Contactor | 3TB42(3pieces)3TB43（1piece） | 4 | Germany Siemens |
Relay | MYZN-J | 2 | Japan OMRON CO.LTD |
Vacuum Switch | 5SJ63C25(1 piece）5SJ61C4（1piece） | 2 | Germany Siements |
Transducer | VFD015 B21A | 1 | Taiwan Delta |
Thermo relay | 3UA59 | 2 | Germany Siemens |
Counter | E3D4NK | 1 | Shanghai Daqi Automatic |
Level Sensor | TSA-30M-25NB | 1 | Zhejiang Tongshen Electric |
Main motor | CH-32-1500W | 1 | Taiwan DongLi |
Cam | RU-100DS-10 RU-100DS-6 | 2 | Taiwan TZU(ANQIU) |
Bearing | Bearing Series | 90 | Japan Osaka SEIKO Company |
Vacuum Pump | SK-0.3A | 1 | Zhejiang |
