Introduction

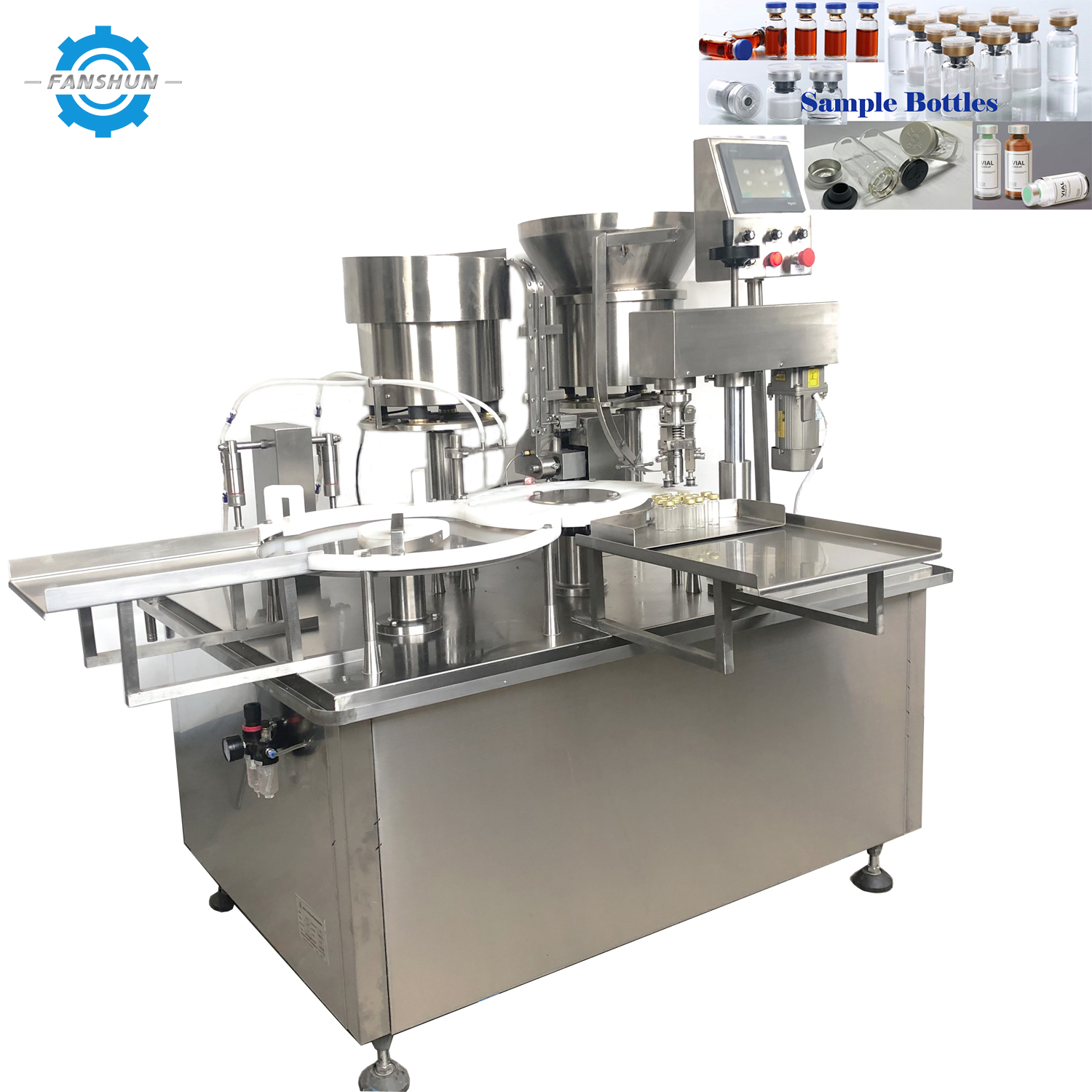

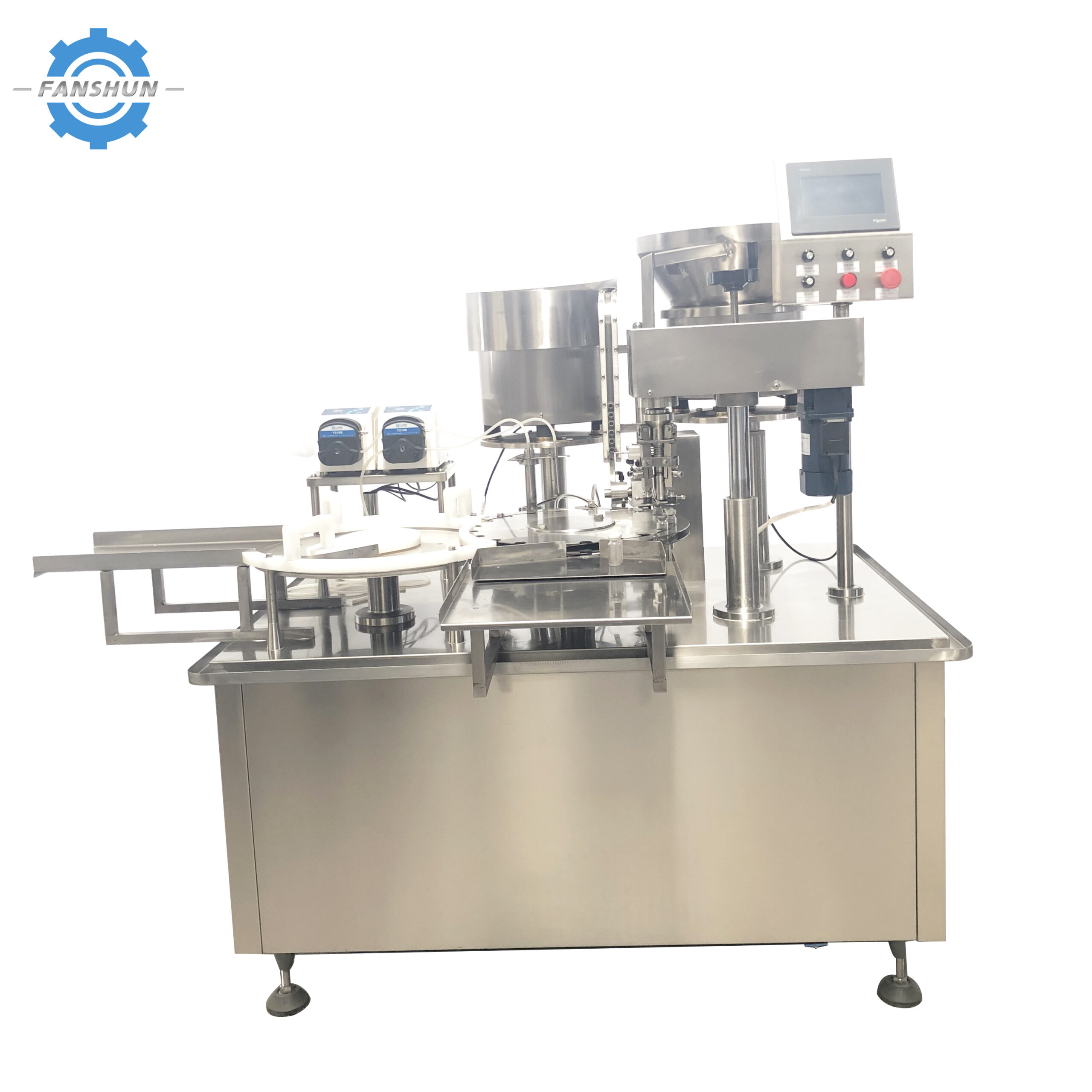

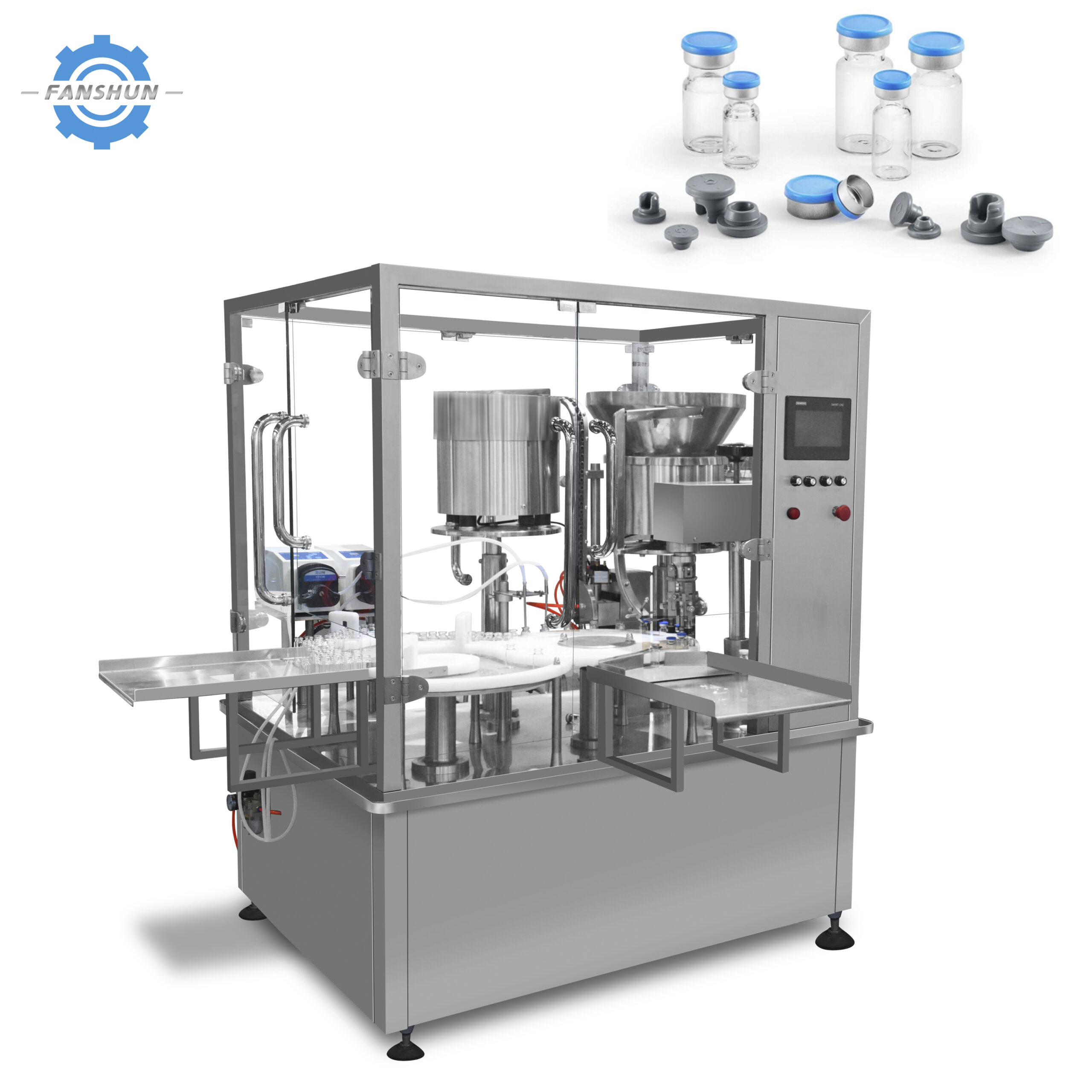

This machine is the main body of the liquid filling line, which can complete the actions of filling, feeding, stoppering and capping. It adopts plunger pump for filling liquid, electromagnetic vibrator for stopper and cover feeding, and three-knife centrifugal capping. Characterized by the compact structure, accurate measurement, reliable operation it is a ideal equipment for vial filling, meeting GMP requirements.
Technical Parameters
|
Production capacity
|
2400 ～ 3000 vials / h
|
|
Applicable vial
|
2-10ml
|
|
Stopper feeding
|
full stopper
|
|
Capping method
|
three-knife centrifugal
|
|
Measurement accuracy
|
± 1%
|
|
Power supply
|
380V/50Hz/3phases
|
|
Power
|
2.5Kw
|
|
Dimensions
|
2500mm * 900mm *1600mm
|
Equipment Main Configuration
|
Nee.
|
Description
|
Model
|
Manufacturer
|
Observation
|
|
1
|
Filling machine body
|
DYG
|
Fanshun
|
stainless steel/1010 nylon
|
|
2
|
Main control system
|
|
Chint
|
Stable performance and reliable movement
|
|
3
|
Plunger pump
|
customized
|
|
316L
|
|
4
|
Hose
|
|
Fanshun
|
|
|
5
|
Reducer
|
90YYJT120
|
Wenzhou
|
Low noise and small temperature difference
|
|
6
|
Conveyor chain
|
90YYJT90
|
Tongzhou
|
Plastic
|
|
7
|
Stopper/cover feeder
|
Customized
|
Fanshun
|
|
|
8
|
Cover feeding mechanism
|
Customized
|
Fanshun
|
|
|
9
|
Transducer
|
VFD015S21D
|
Delta
|
Good quality, small size
|
|
10
|
Main pneumatic components
|
|
AirTAC
|
|
|
11
|
Main transmission parts
|
|
Fanshun
|
Made by standard
|
|
12
|
Main parts
|
|
Fanshun
|
Made by standard
|
